PXR GEN 160-09 Røntgenapparat
Home » Inspeksjonsutstyr » NDT » Røntgenapparat »
Dacon tilbyr batteridrevet røntgenapparat fra Pexray Tech med høy gjennomtregningsevne og 0,9mm fokuspunkt.
PXR GEN160-09 apparatet har god batterikapasitet og bidrar til god gjennomføring av NDT inspeksjonen. Apparatet er værbestandig, har høy gjennomtregningsevne og smalt fokuspunkt.
Tekniske spesifikasjoner
| Waveform | Constant potential |
| Output range | 30 kV to 160 kV |
| Output current | 0.1mA to 1.0 mA |
| Maximum power | 160 W |
| Maximum exposure time | 300 seconds continous, duty cycle 83% |

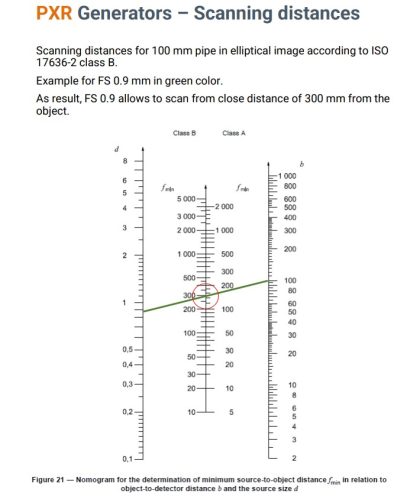

| Focal spot size | 0.9 mm at 160 kV (according to EN 12543-2-2021) |
| Beam angle | Cone beam 50° |
| Leakage dose at 1 m | < 2000 µSv/h @ full power, depending on direction |
| Dose rate at 1 m | Typical 680 mSv/h |
| Inherent filtration | 3 mm of Aluminum eqv |
| Power Supply | 2 x 60 Wh, Li-Ion Batteries, rechargeable, exchangeable. Total capacity ~120 Wh. |
| Battery life | Typical 30 min @ 160 kV, 1 mA |
| Communication protocols | Wireless 802.11 2.4 GHz and Wired TCP/IP Ethernet |
| Dimensions [W × H × D] | 338 x 279 x 150 |
| Weight | 12 kg with batteries |
| Safety | Physical safety interlock with key Audible and visible warning signs |
| Operating temperature | -20 °C to +50 °C (-3 °F to +122 °F). Warm batteries should be used at temperatures below 0 °C. |
| IP rating | IP65 (IEC 60529) |
