Gun Barrel measurement system
ROBINCA is a portable versatile measurement system for assessment of pitting, erosion and general wear of gun barrels. The system is compounded of modules and the software contains all relevant gun bores. By switching between caliber specific components, one main unit can be utilized for all gun bores. The modular nature of the gun barrel measurement system provides increased versatility and cost savings. For the time being the ROBINCA ranges from 4,6mm rifle barrel to 155mm howitzer. Software user-interface is uniform through the complete range.
ROBINCA has had a decisive importance by implementation and quality control of new ammunition and weapon systems and manufactures.

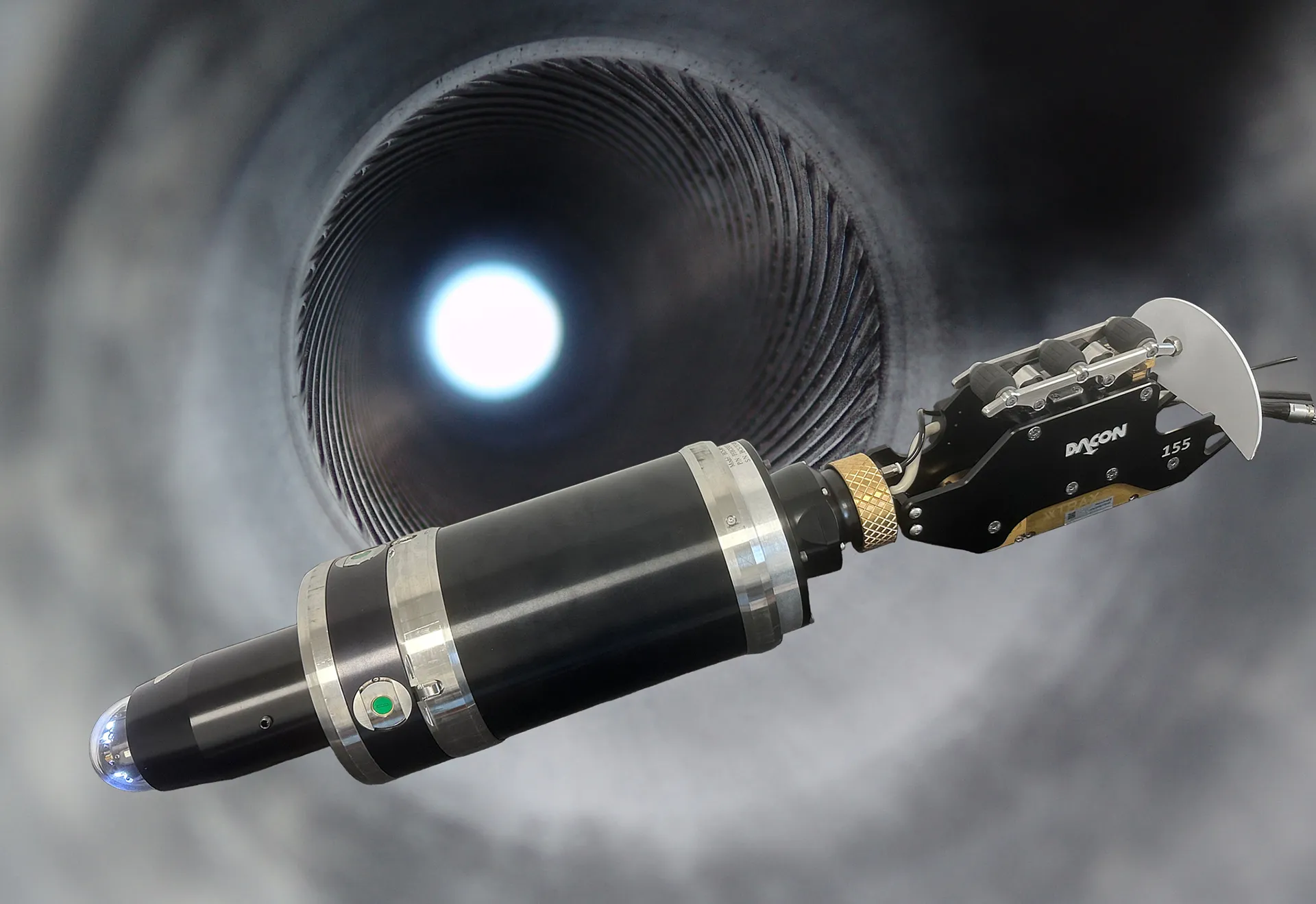

155mm ROBINCA measurement system
The requirement of condition monitoring of the 155mm rifled gun barrel includes diameter measurement on defined positions in the barrel, visual inspection and area calculation of findings. The ROBINCA system ensures an effective inspection with an automatic procedure combining pan/tilt camera, crawler, launcher, position laser and highly accurate and rugged capacitive measurement system.
ROBINCA system features:
- Full diameter measurement in the grooves and on top of the calibers.
- Applicability for all gun bore dimensions including chamber.
- Non-contact measurement technique with micrometer resolution.
- Software assisted inspection.
- Ability to inspect visually during movement between predefined measurement positions.
- Automatic motorized longitudinal movement.
- Picture documentation of barrel interior details.
- Instant report presentation.
120mm ROBINCA measurement system
The requirement of condition monitoring of the 120mm smooth gun barrel includes diameter measurement on defined positions in the barrel, visual inspection, pitting depth and damaged area of chromoium plating. The ROBINCA system ensures an effective inspection with an automatic procedure combining pan/tilt camera, crawler, launcher, position laser, laser pit depth scanner and highly accurate and rugged capacitive measurement system.
ROBINCA system features:
- Full diameter measurement.
- Applicability for all gun bore dimensions including chamber.
- Non-contact measurement technique with micrometer resolution.
- Documentation of pitting depth and damaged area of chromoium plating.
- Software assisted inspection.
- Ability to inspect visually during movement between predefined measurement positions.
- Automatic motorized longitudinal movement.
- Picture documentation of barrel interior details.
- Instant report presentation.
105mm ROBINCA measurement system
The requirement of condition monitoring of the 105mm rifled gun barrel includes diameter measurement on defined positions in the barrel, visual inspection and area calculation of findings. The ROBINCA system ensures an effective inspection with an automatic procedure combining pan/tilt camera, crawler, launcher, position laser and highly accurate and rugged capacitive measurement system.
ROBINCA system features:
- Full diameter measurement in the grooves and on top of the calibers.
- Applicability for all gun bore dimensions including chamber.
- Non-contact measurement technique with micrometer resolution.
- Software assisted inspection.
- Ability to inspect visually during movement between predefined measurement positions.
- Automatic motorized longitudinal movement.
- Picture documentation of barrel interior details.
- Instant report presentation.
75mm ROBINCA measurement system
The requirement of condition monitoring of the 75mm rifled gun barrel includes diameter measurement on defined positions in the barrel, visual inspection and area calculation of findings. The ROBINCA system ensures an effective inspection with an automatic procedure combining pan/tilt camera, crawler, launcher, position laser and highly accurate and rugged capacitive measurement system.
ROBINCA system features:
- Full diameter measurement in the grooves and on top of the calibers.
- Applicability for all gun bore dimensions including chamber.
- Non-contact measurement technique with micrometer resolution.
- Software assisted inspection.
- Ability to inspect visually during movement between predefined measurement positions.
- Automatic motorized longitudinal movement.
- Picture documentation of barrel interior details.
- Instant report presentation.
Medium ROBINCA measurement system
The requirement of condition monitoring of the medium rifled gun barrels includes diameter measurement on defined positions in the barrel, visual inspection and area calculation of findings. The ROBINCA system ensures an effective inspection with an manual procedure with a highly accurate and rugged capacitive measurement system combined with a VideoProbe for visual inspection.
ROBINCA system features:
- Full diameter measurement in the grooves and on top of the calibers.
- Applicability for all gun bore dimensions 20mm – 50mm.
- Non-contact measurement technique with micrometer resolution.
- Software assisted inspection.
- Ability to inspect visually.
- Manual longitudinal movement.
- Picture documentation of barrel interior details.
- Instant report presentation.
Small ROBINCA measurement system
The requirement of condition monitoring of the small rifled gun barrels includes diameter measurement on defined positions in the barrel, visual inspection and area calculation of findings. The ROBINCA system ensures an effective inspection with an manual procedure with a highly accurate and rugged capacitive measurement system combined with a VideoProbe for visual inspection.
ROBINCA system features:
- Full diameter measurement in the grooves and on top of the calibers.
- Applicability for all gun bore dimensions 4,6mm – 12,7mm.
- Non-contact measurement technique with micrometer resolution.
- Software assisted inspection.
- Ability to inspect visually.
- Manual longitudinal movement.
- Picture documentation of barrel interior details.
- Instant report presentation.
